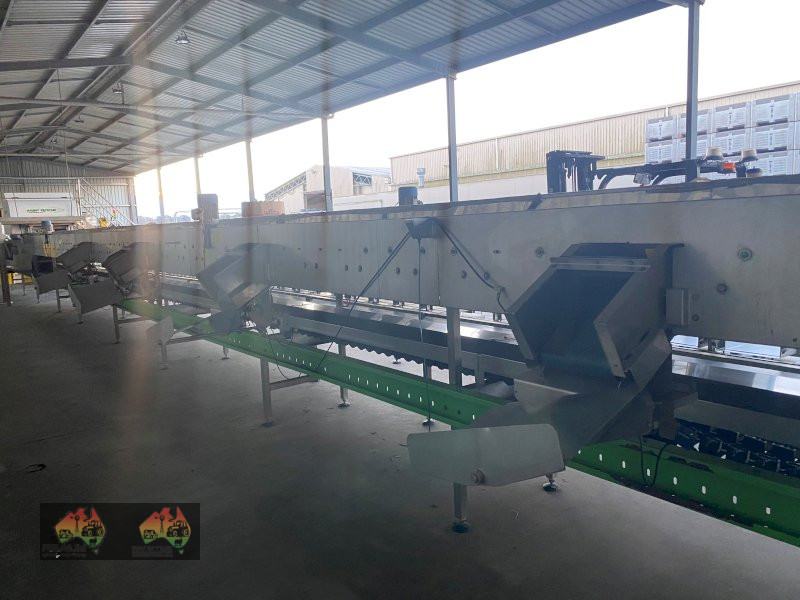

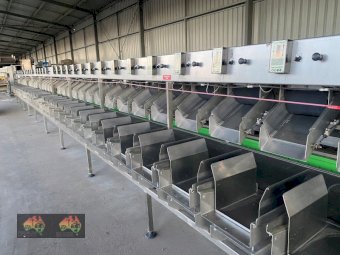

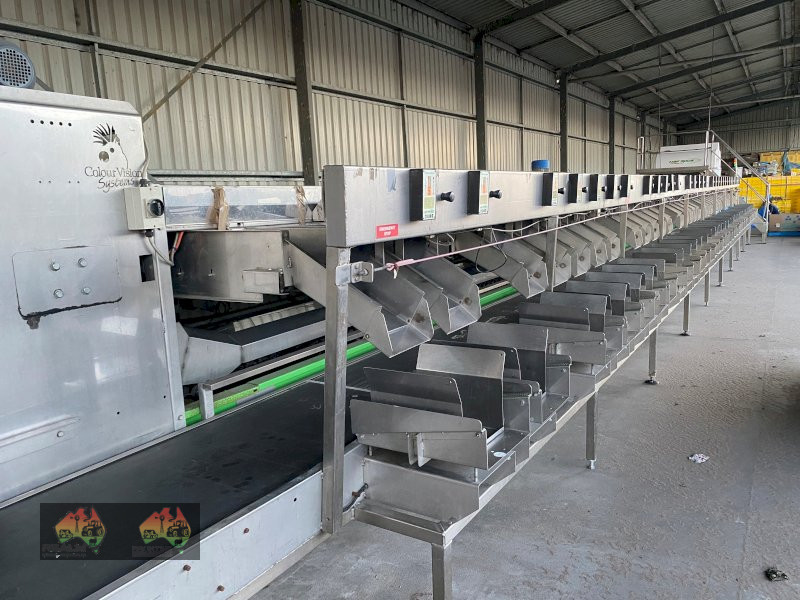

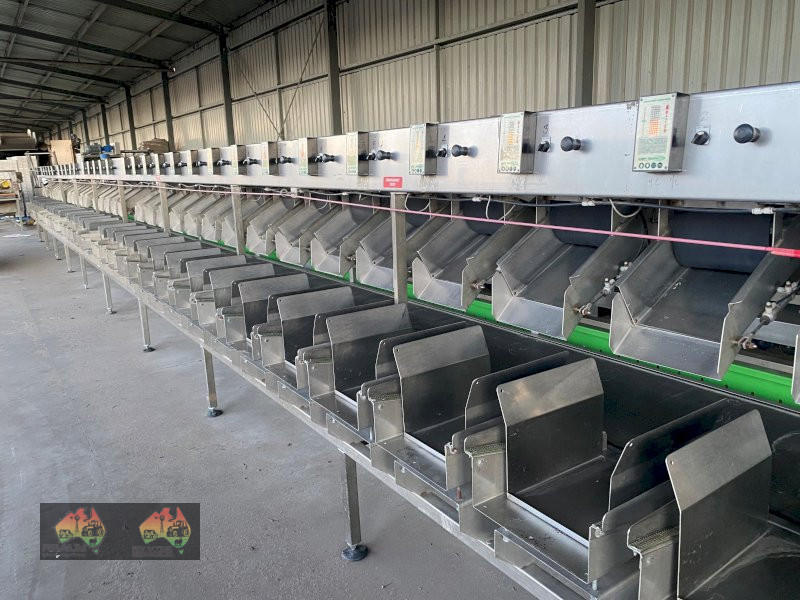

Integra Tomato Line - In Very Good Working Order
INTEGRA 2 LANE

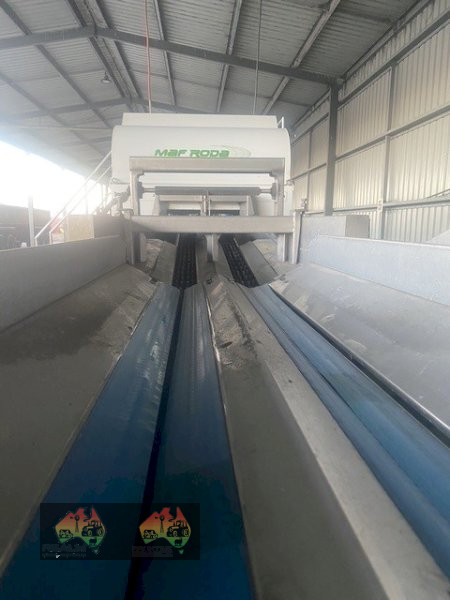

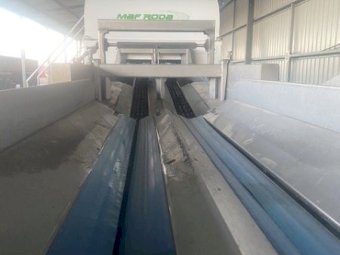

V belt prealigner operating at different speeds.
Entry element and drive section Horizontal singulator with motorized roller rotation and separate
drive for rollers underneath sensor; Weighing; Drive section with frequency inverter for speed
control; Control cabinet; Manual centralized lubrification of grader chains; Carrier cleaning system.
(Patented equipment)

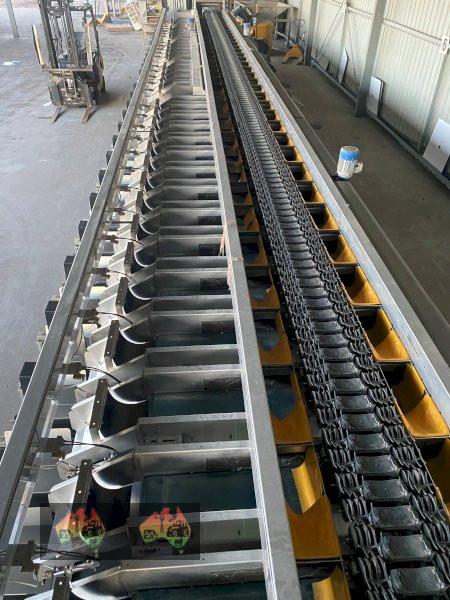

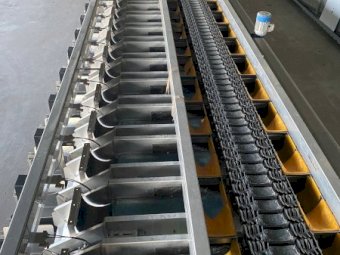

20 Linear m for INTEGRA sizer 2 L comprising chassis, cradles, crossbars, etc...
36 Hammock descent for INTEGRA sizer 2 lanes mechanically and electronically equipped with
hammock, solenoids, outlet board, without traverses
36 Outlet INTEGRA 2L cam, solenoid, outlet card
Singulator, Load Cell and Of End Spills.
ORPHEA V
ORPHEA V for a 2-lane sizer, control station for sorting fruits in 16 size
comprising: * PC, 22" LCD screen, keyboard and mouse
w e i g n t c a r d
* Network card
* Coupler
* Encoder
* 24 Volt Supply
* Laser printer
* Remote control software to connect with customer's phone line.

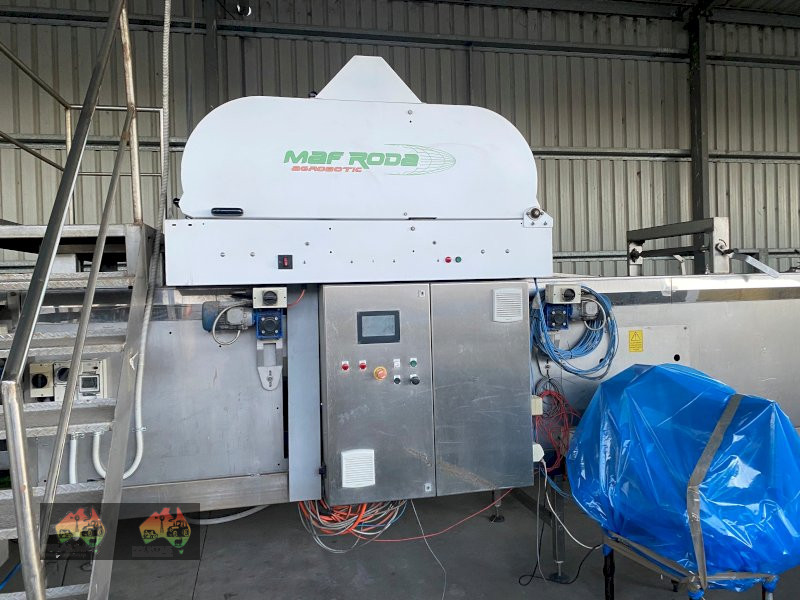

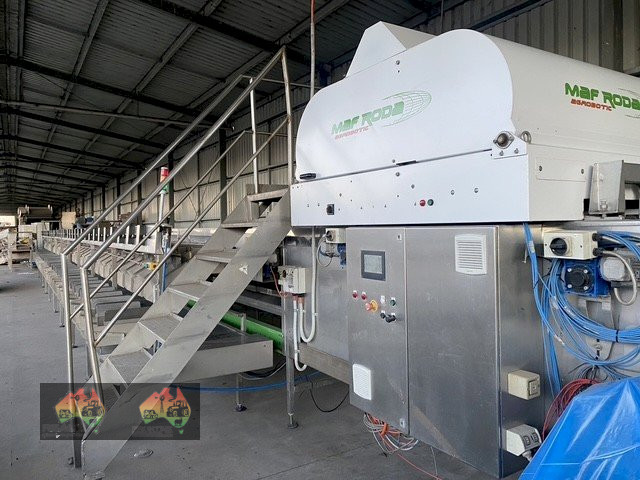

GLOBALSCAN V for a 2-lane sizer including :
* Chassis for quality sorting with cylinder helped tipping of the camera
D O X
* housings each with 2 CMOS (colour and IR camera) per lane for sorting
fruits with 8 colours and 8 quality depending of external defects and shape
coefficient, diameter, automatic detection of leaves on separation under
c a m e r a d o x
At the customer's charge:
- Air conditioning in the control cabin
It is absolutely necessary to have a phone line available near the computer
for the transfer of parameters' files
10 Outiets cards (CPSO5) to control the demand feed belts by electronic
tops from the sizer
CROSS BELTS FOR CARTON/CRATE FILLING
32 Motorized outlet belt 1.10m Jong 300 mm wide, for INTEGRA sizers 21.
CROSS BELTS FOR BIN FILLING
4 Motorized outlet belt 1,10m long 500 mm wide for INTEGRA sizers 2L
32

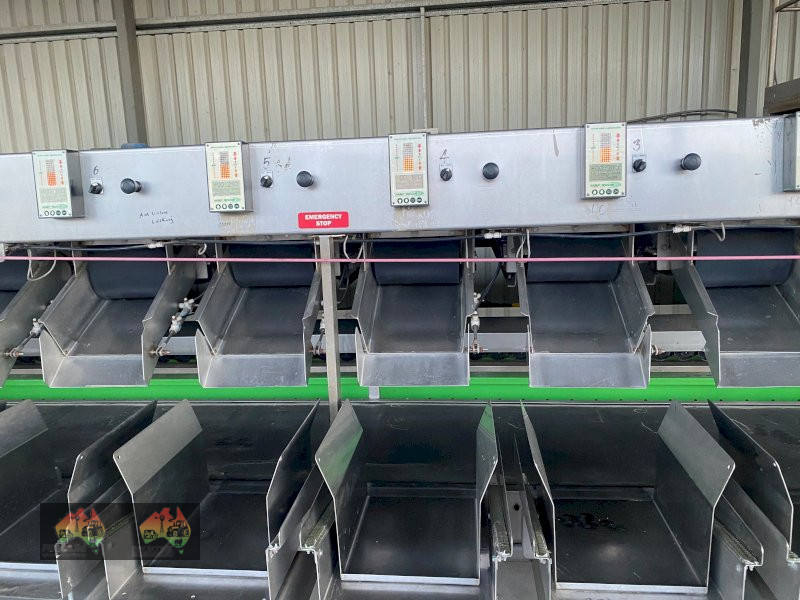

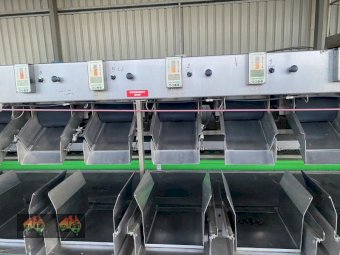

CARTON STANDS WITH WEIGHING DEVICES
CHUTES FOR DCMS
Pnuematic door control
AUTOMATIC FLIP FLOP CHUTES
FULL CARTON CONVEYOR
20 ML of belt conveyor 600mm wide, antistatic belt
INTEGRA ACCESSORIES
Electronically controled infeed for the INTEGRA IV 2L sizer
Frequency variator for 1.5 kw.
Automatic retractable cleaning system of bicones for 2-lane INTEGRA IV by independent
motorized brush, two banisters of wash (soap + water)
Automatic greasing system of the chains of INTEGRA 2L sizer
The air conditioning in the GLOBALSCAN control cabin
General MAF electrical specifications:
1.1/ Electrical cabinet:
MAF electrical distribution panels are in grey-painted steel (RAL 7032).
The protection factor is IP66 for one door cabinets
and IP55 for two doors cabinets.
Other materials are available as options.
Junction boxes are made of polycarbonate.
1.2/ General cabinet power supply:
MAF electrical cabinets must be power supplied by
a 5 conductor cable (3 phases + neuter + PE) or 4
conductors (3 phases + PEN) according to the equipment.
The necessary powers are indicated on the general lay out.
The power supply tensions must respect the following tolerances:
400V tri ‡ 10 % / 50 Hz ‡ 1%.
The entry of the power supply cable inside the electrical cabinet must be made
via a cable gland top left of the cabinet.
1.3/ Conductor colours:
According to CE 60 204-1 standard, MAF uses the following colours in its electrical
cabinets :
BK n z C k Power (Phase 500, 400, ou 230V)
Bc Light blue Neuter (alternating current)
OG Orange Without potential energy or tension coming from outside
BU Dark blue Direct current control (12, 24, 48V/= etc...)
Wh White Direct current control (OV)
RD Alternating current contro! (12, 24, 48V)
GNYE Green/Yellow conducteur de mise a la masse (de
protection)
1.4/ Sheaths and cable trays:
Al cable trays are in closed grey PVC (classification M1)
o r i n m e l e k e n e i k w a y s
Al the cables are protected by ringed grey PVC sheats.
